ABB's LS Series Mechanical Level Switches are the most rugged and durable liquid point-level detection products in the industrial marketplace today.
ABB innovations such as the one-step switch point adjust and the hermetically sealed/dual compartment switching mechanism have eliminated the need for bulky housing covers that are associated with cracking, moisture ingress, high temperature fatigue, and ultimately switch failure.
This configuration guide contains general guidelines and ordering data that will assist you in selecting the best float or displacer operated switch for your specific fluid level application.
These switches are available in flanged or sealed chambers or as insertion models.
ABB has over 100 configurations available.
Rugged and Robust Chamber Design for Demanding Applications
One Step Switch Point Adjust
Precision Fabricated Floats and Displacers
Compact Switching Mechanism Eliminates Bulky Housing and Traditional Bias Springs
Easily Retrofitted to Most Competitor Models
General:
Over 10,000 global installations in applications ranging from condensate to CO2 to crude oil
Easily retrofitted to most competitor models
Designed to handle specific gravities as low as 0.25, temperatures as high as 1000° F (538° C), and pressures up to 4500 psi (310 bar)
Choose from eight (8) standard designs and six (6) different switching mechanisms
Worldwide delivery
Five year manufacturer warranty
Chambers:
Choices for chamber material include: Carbon Steel, 316 Stainless Steel, Duplex Stainless Steel, Hastelloy C-276, Hastelloy B-3, and P11 and P91 Chrome Molly Steel.
Flanged models have standard slip-on ―top access connection‖ flanges. Weld-neck flanges are optional.
Designed to guidelines of ASME B31.1 and B31.3
All welders and fabrication procedures are qualified and maintained per ASME
Certification to NACE MRO175 and MRO103 is available
Sensing Elements:
Each float and displacer is precision fabricated to indicate true fluid level.
Choices for float and displacer materials include: 316 Stainless Steel, Hastelloy C-276, and Titanium (Grades 2 and 5). Ceramic is also available for displacers.
Process Connections:
A wide variety of process connection types include: Flanges (slip-on, weld-neck), Socket Weld, and Threaded (NPT)
Available flange ratings and sizes include: ASME, DIN, HG, and most International and customer specified flange types
Petrochemical Industries
Power Industries
Chemical Industries
Oil and Gas
LS Series Mechanical Level Switch
Electric Level Switch

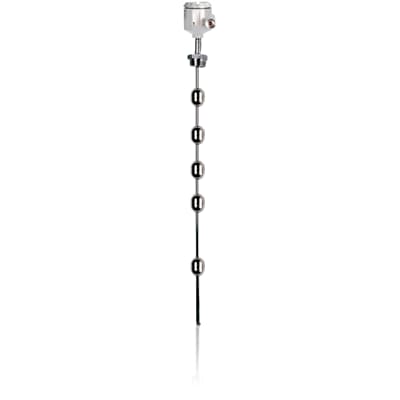

Multi point liquid level sensor
