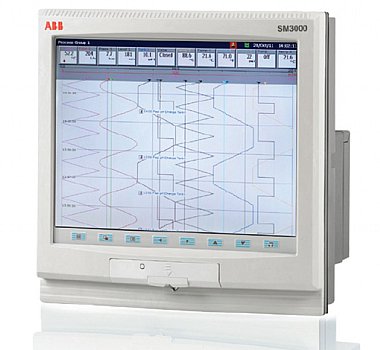

The SM3000 Multipoint Videographic Recorder features state-of-the-art data storage and security technologies.
Up to 36 universal analog inputs, communicated inputs or math results can be recorded and displayed in a variety of operator views.
8Mb of onboard flash memory, capable of storing 2.8 million samples of data, and the option of Compact Flash removable memory cards provide extensive data storage capabilities.
Large clear display 31cm (12,1 in.)
Unsurpassed environmental protection
Multiple point recording
Robust and convenient archive storage
Intuitive user interface
10BaseT Ethernet communications as standard
21 CFR Part 11 compliant data security
Using the SM3000, up to 36 channels can be recorded, with data able to be arranged in a variety of views to provide users with a tailored view of their process.
Six process groups are provided, allowing channels to be grouped together and individual displays created for different processes.
Process data can be easily viewed on the SM3000’s large 31cm (12.1in) display in a wide variety of formats, including a circular chart and a combined overview format showing all six process groups.
Universal Inputs:Up to 36
Display: 31cm (12.1 in.) Color TFT
Operator Interface:Tactile Keys
Process Alarms: 144
Process Groups: 6
Advanced Maths and Logic: Optional
Batch Recording: Optional
Totalizers: Standard
Ethernet Communications: Optional
RS485 Communications: Optional
Water purification in the pharmaceutical industry
Monitoring the autoclaving process in the pharmaceutical industry
Freeze drying in the pharmaceutical industry
Field mountable videographic recorder
Videographic recorderMulti-point videographic recorder
