Widely specified in the industrial and commercial plumbing trade
Includes a separable thermowell
3.5" (90mm) and 6" (160mm) stem
Available in aluminum or Valox® (9”) case
Organic filled tube (non-mercury)
Dual scale (°F & °C)
Vari-angle connection and 360 degree case rotation for easy installation
Graphite filled bulb chamber for maximum heat conduction
±1% accuracy
Dial: 9” (230mm) aluminum or Valox® case, impact resistant
Lens: Glass
Connection: 3/4” NPT with thermowell 1/4” UNEF swivel nut (no thermowell)
Scales: Aluminum painted white with black markings
Bulb Chamber: Tapered cast aluminum with graphite fill
Liquid Filling: Organic fluid
Adjustment: Fully adjustable
Thermowell: 3/4” brass separable socket (Other thermowells available)
Accuracy: ±1%
Enclosure Rating: IP54
New construction, plumbing, water lines, boilers, heating, ventilation and air conditioning
Rail_mounting_version.png)

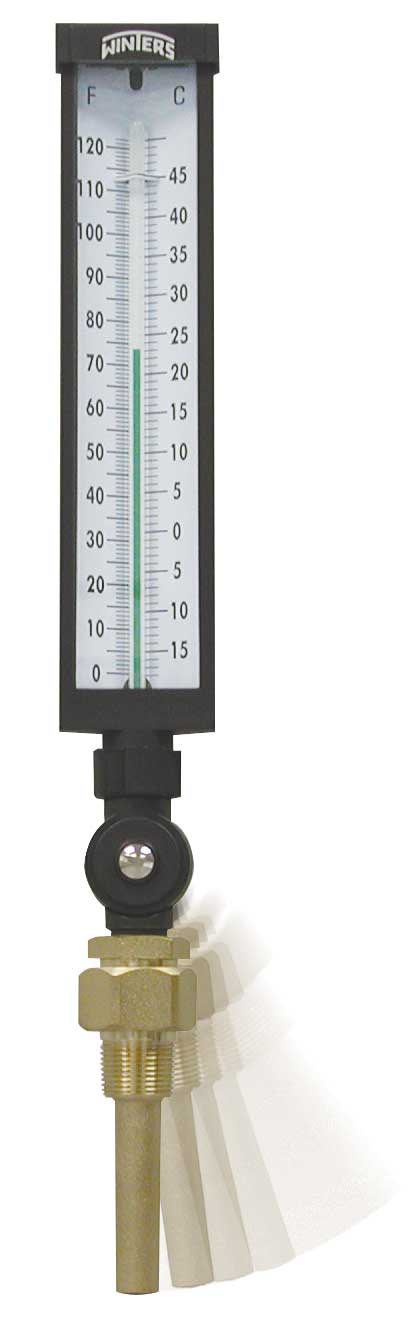

Machine Glass ThermometersTIM Industrial 9IT Thermometer

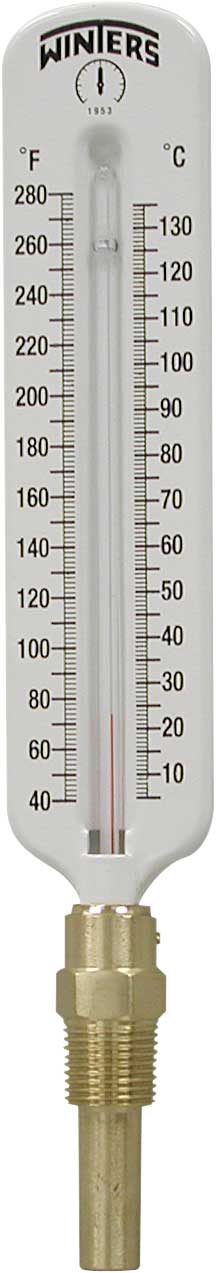

TSW Hot Water Thermometer

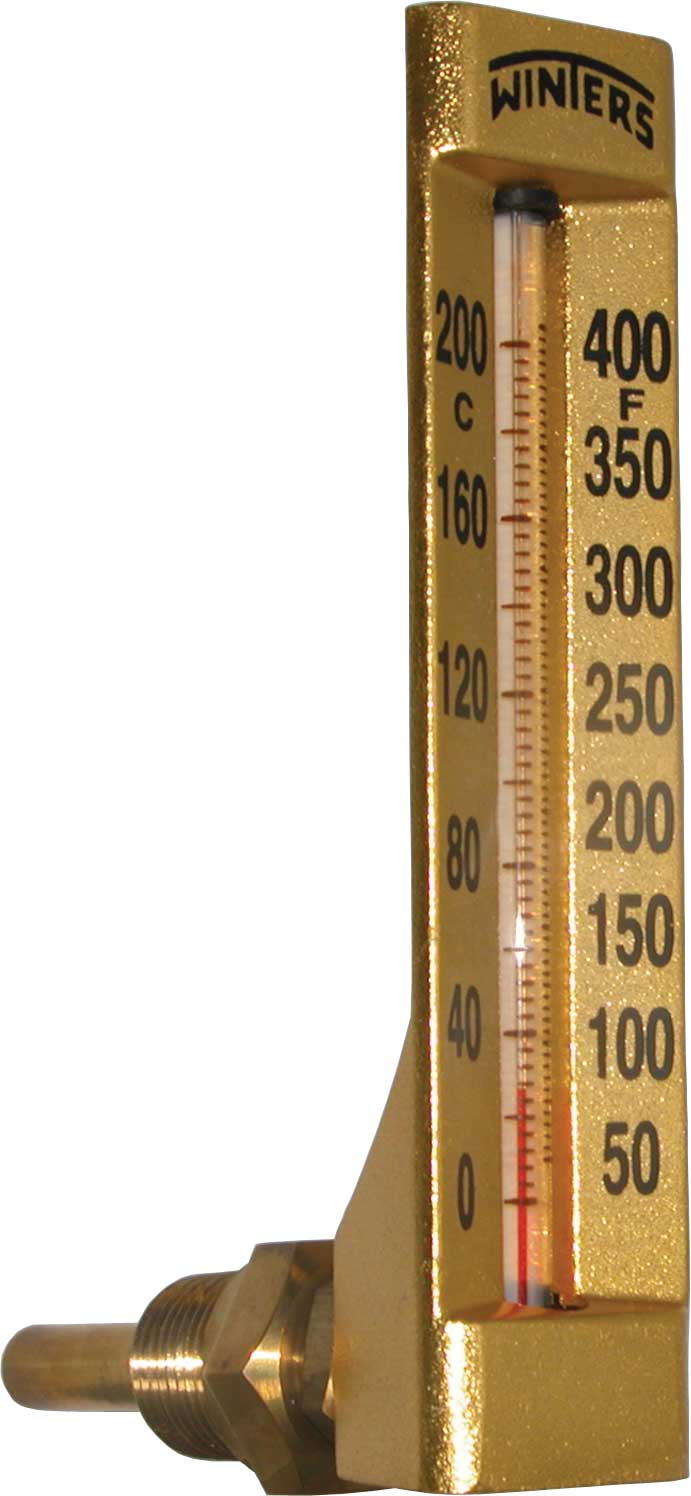

TAG HVAC Gold Case Thermometer

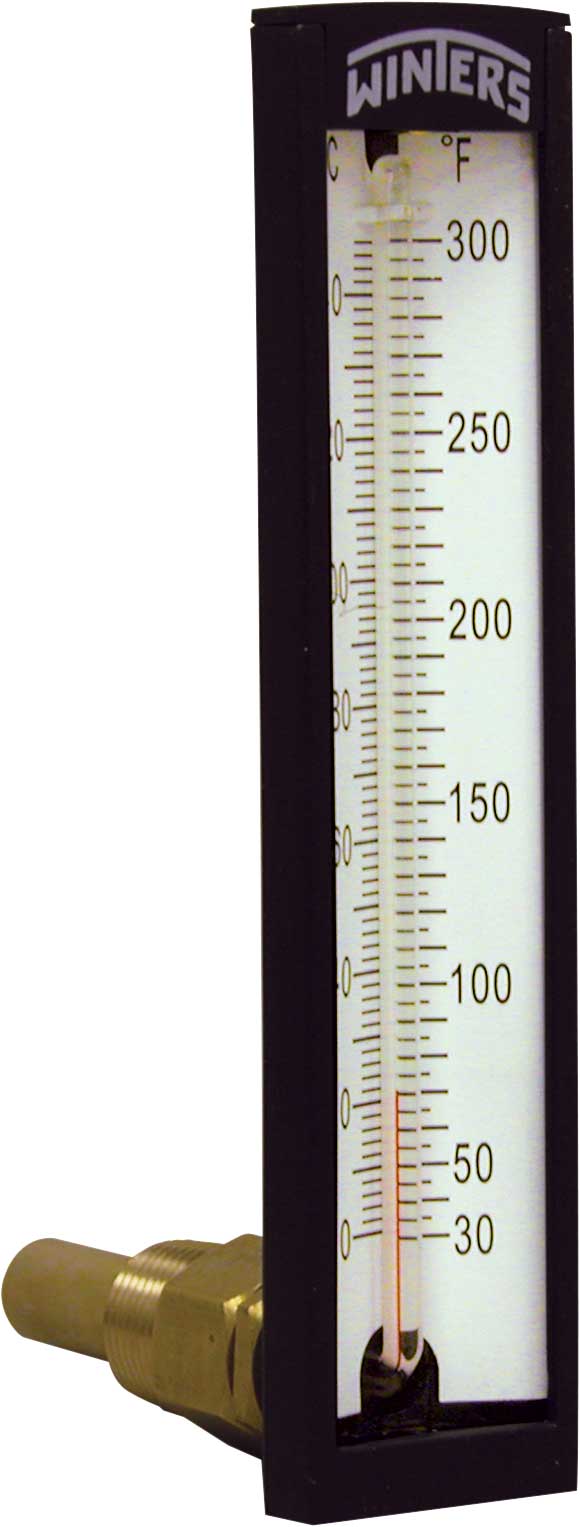

TAS Industrial 5AS Thermometer
