Process Connection: 2 x 1/2" NPT F
Instrument Connection: 2 x 1/2" NPT F
Vent / Drain: 2 x 1/4" NPTF ( Supplied with 1/4" NPT blind plug)
Maximum working pressure : 413 bar / 6000 PSI at 100° C
Other Process & Instrument Connections are avaiable on request
Material : SS 316/316L, SS 304, Carbon Steel in accordance with NACE MR0175.
Monel, Inconel, Hastelloy, Duplex & Super Duplex Steel are also available on request.
Gland packing : PTFE / Graphite
These manifolds are designed for remote mounting on instruments using threaded instrument & process connections.
These valves are having two isolation, one equilizer & two drain/calibration valves.
The instruments connections are positioned at 54 mm center distance but can also be used for other center distances with the help of screwed fittings.

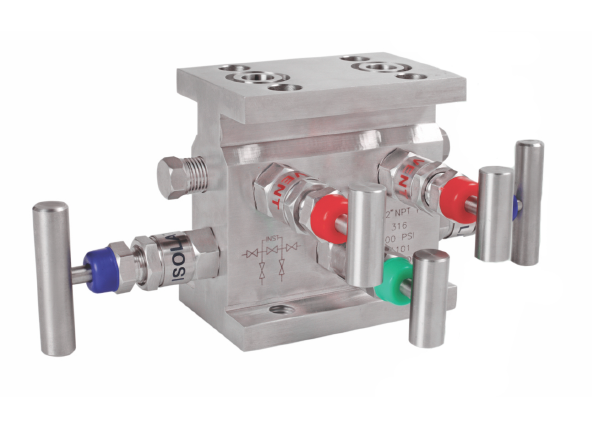

5 Valve Instrument Manifold Direct Mount
5 Valve Instrument Manifold Direct Mount

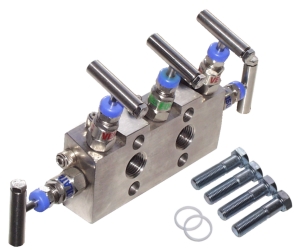

5 Valve Remote Mounted Manifold (Pipe-to-pipe)
5 Valve Remote Mounted Manifold (Pipe-to-pipe)

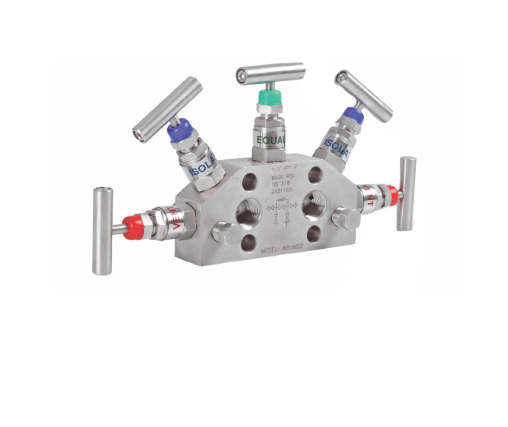

5 Valve T Section Instrument Manifold Direct MountFive Valve Manifold
Five Valve Manifold
Five Valve Manifold
Five Valve Manifold
