Process Connection: 2 x 1/2" NPT F
Instrument Connection: Flanged to IEC 61518 Type A
Vent / Drain: 2 x 1/4" NPTF ( Supplied with 1/4" NPT blind plug)
Maximum working pressure : 413 bar / 6000 PSI at 100° C
Other Process Connections are avaiable on request
Material : SS 316/316L, SS 304, Carbon Steel in accordance with NACE MR0175.
Monel, Inconel, Hastelloy, Duplex & Super Duplex Steel are also available on request.
Gland packing : PTFE / Graphite
These manifold can be directly mounted on the DP transmitter having 54 mm or 32 mm center to center connections.
Two isolation valves & one equalizer valve is provided along with 1/4" NPT F drain as an option.
These valves are mainly used with DP transmitters.

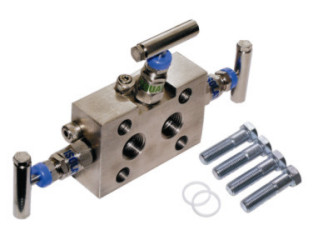

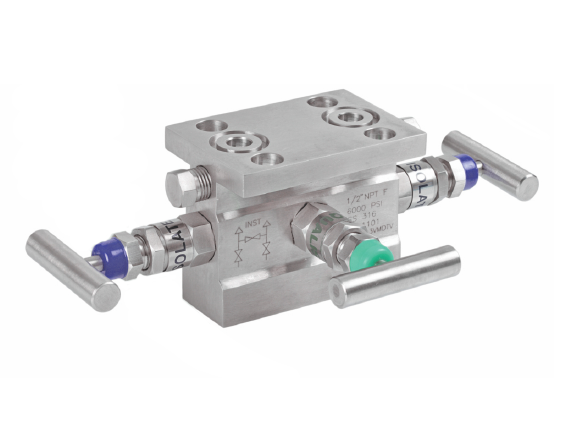

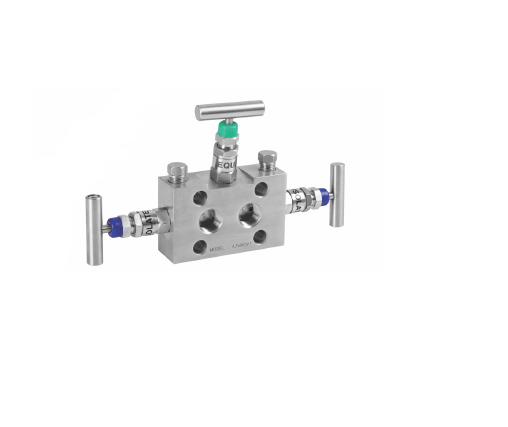

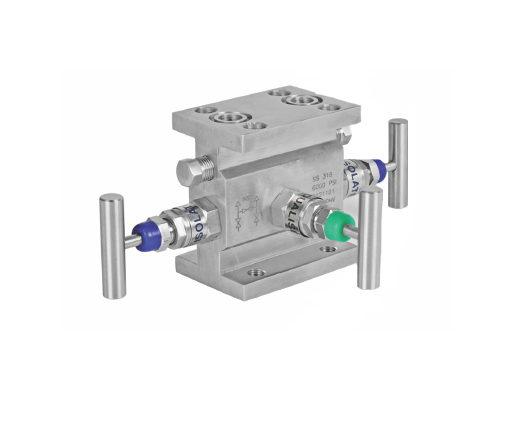

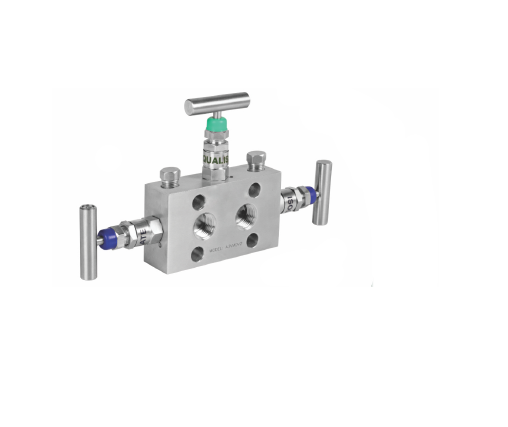

3 Valve Direct Mounted Instrument Manifold

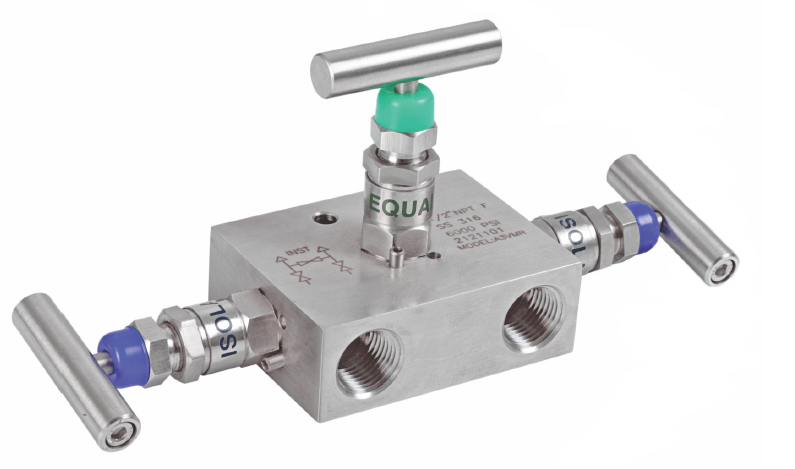

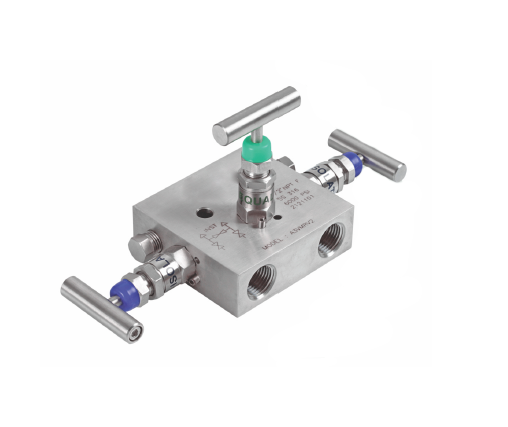

3VR Series 3 Valve Pipe-to-pipe Manifold
