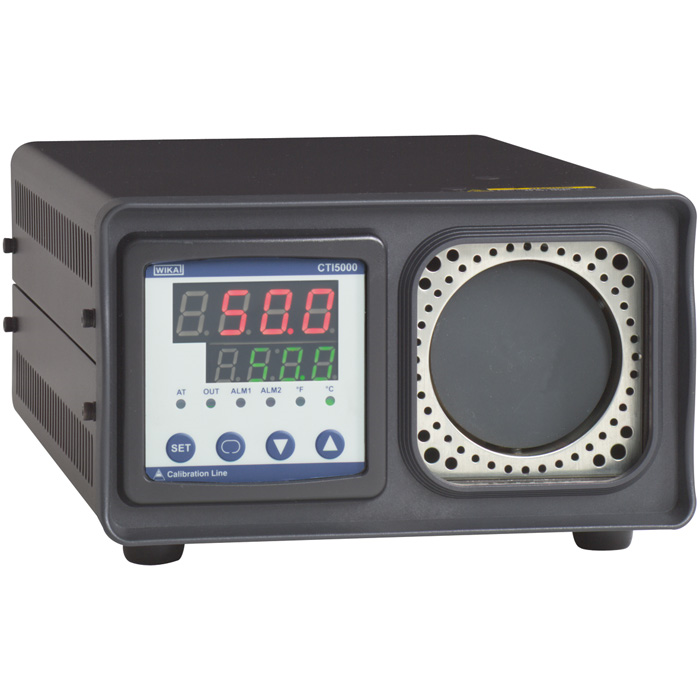

Target – shoot - check: For the calibration of infrared thermometers above ambient temperatures, the CTI5000 is suitable up to 500 °C.
With its accuracy and stability, the new portable infrared calibrator is, above all, suited to calibrating infrared handheld thermometers.
The black body has a large diameter, so that a wide range of infrared thermometers, whatever optics are fitted, can be tested.
The emissivity is fixed at 0.95 and the temperature can be controlled in steps of 0.1 °C.
To check the black body itself, a bore is located directly behind the surface, so that a contact measurement can monitor the quality.
Multifunctional: As well as being used for portable or stationary infrared thermometers, you can use the new modelCTI5000 infrared calibrator to check your thermometers
.You will not find a more compact infrared calibrator than the CTI5000 for your application.
Testing infrared thermometers over a wide temperature range (50 °C … 500 °C)
Large black-body surface area (57 mm) for all types of pyrometer
Bore for insertion of reference sensor
Low weight and compact design
Simple operation
Testing and calibration of non-contact temperature measuring instruments
Reference instrument for works’ laboratories for the calibration of infrared thermometers
On-site calibration
